- Duplex and multi-fiber (up to 24 native) testing at 2 wavelengths in just 1 second
- Patented Click-Out adapters compatible with duplex MDC, SN, LC and multi-fiber MMC, MPO, and SYSTIMAX MTP
- Complies with one-cord reference method

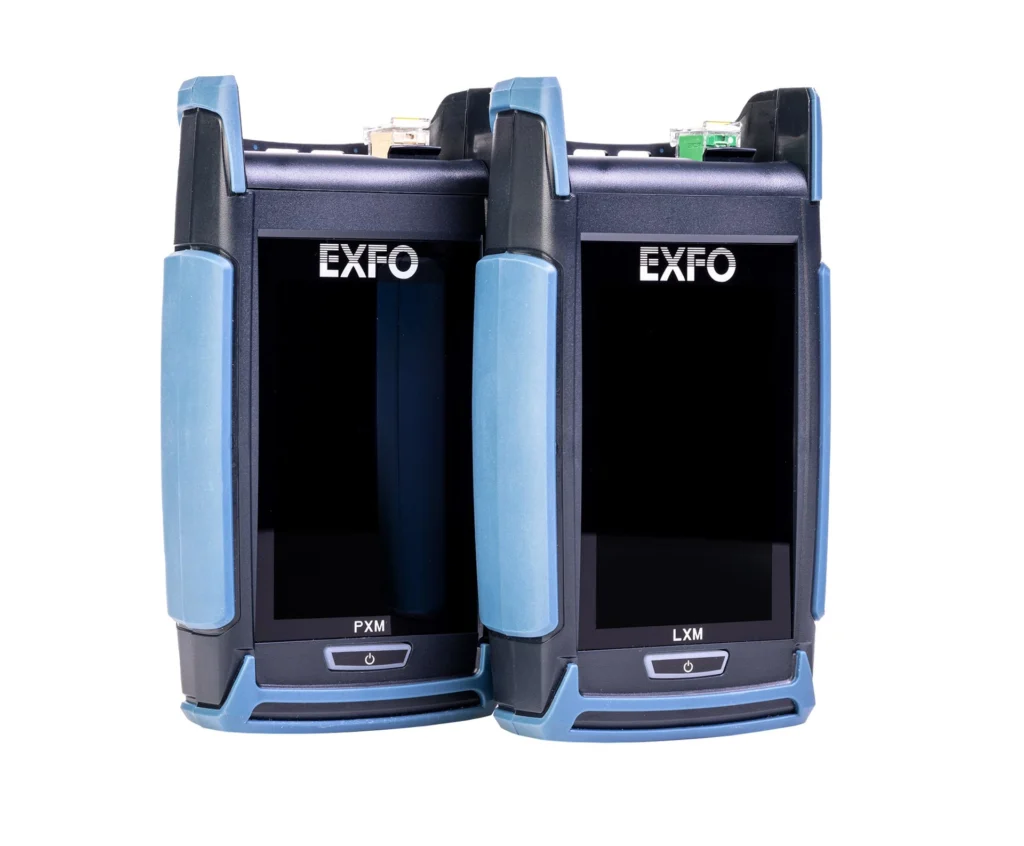

- PXM power meter with contactless connector
- Polarity type, insertion loss and length live measurement results combined on one page

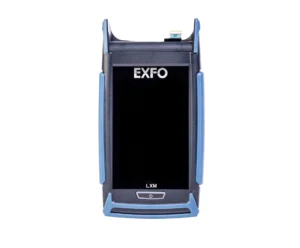

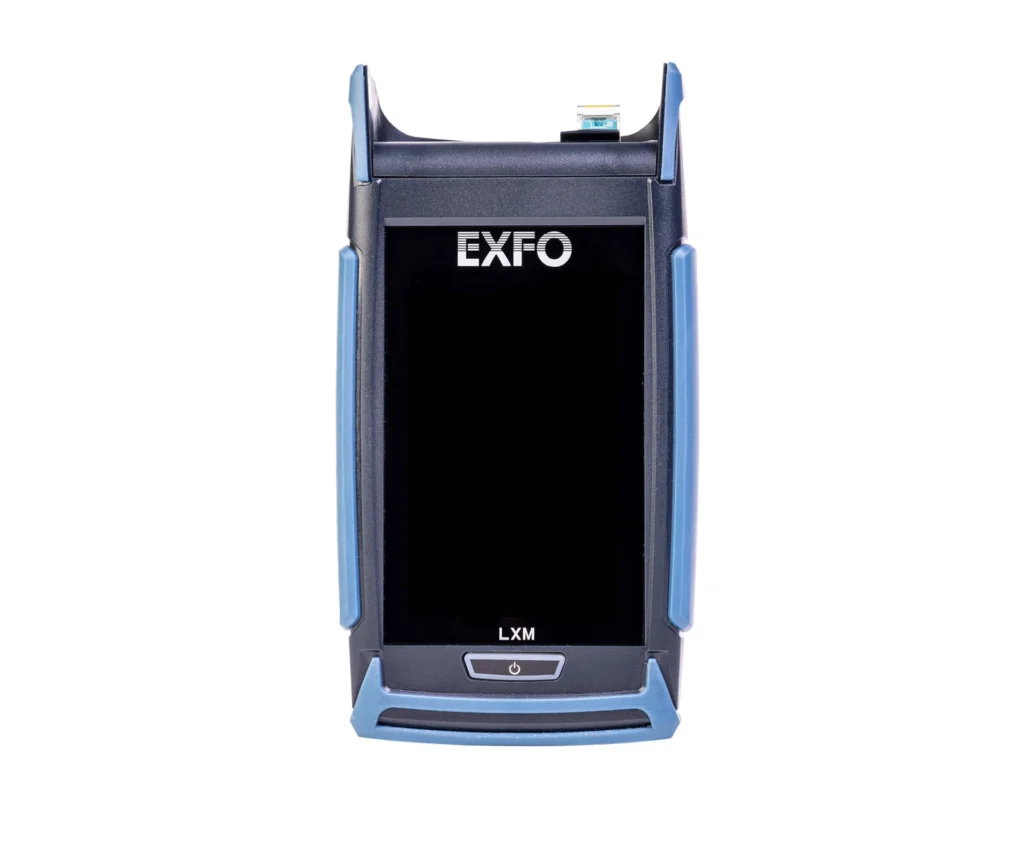

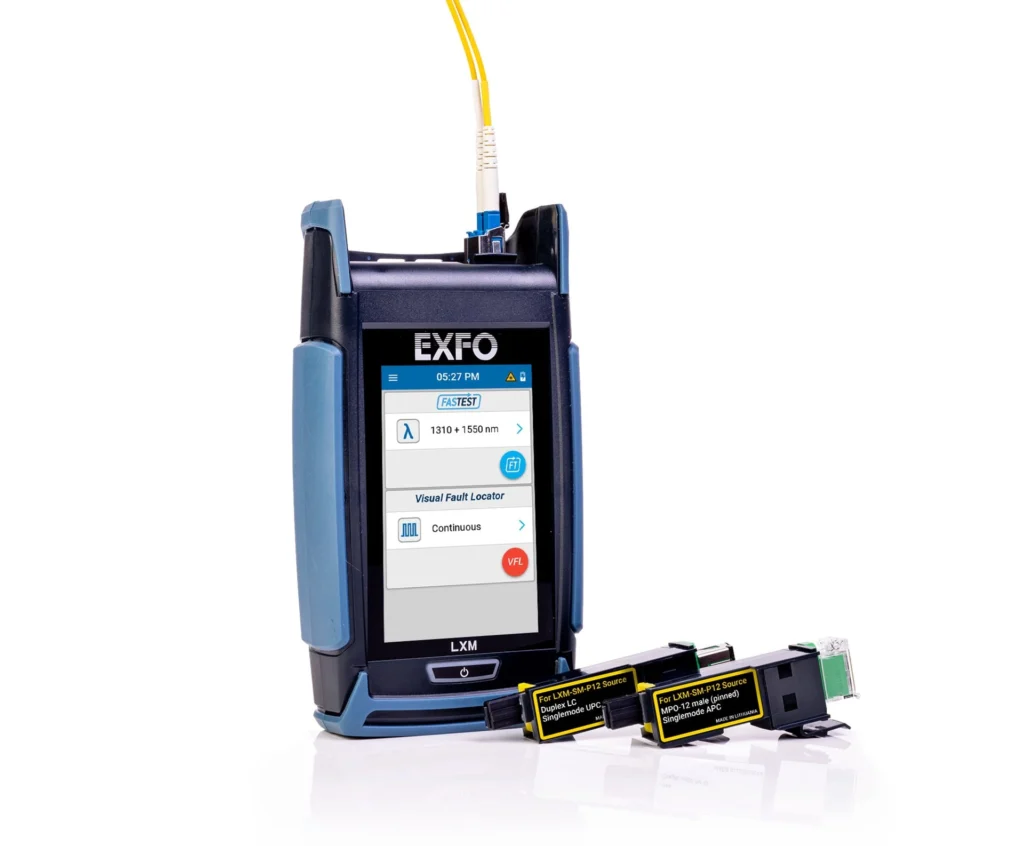

- In-line visual fault locator (VFL) for fiber tracing on LXM
Key Specifications
| Automation | Yes |
| Calibrated wavelengths | 850 / 1300 / 1310 / 1550 |
| EXFO Exchange compatibility | Yes |
| Fiber connector type | MMC / MPO / LC / MDC / SN |
| Fiber type | Singlemode / Multimode |
| Measurement type | Insertion loss / Length / Polarity |
| Multiple wavelength measuring | Yes |
| Tone detection | Yes |
| Visual Fault Locator (VFL) | Yes |
Highlights
Test faster. Test more.
Native duplex and multifiber (up to 24 fibers) testing dual wavelength in just 1 second, using a single test cord and automated workflows.
Built-in features that make testing more intuitive and efficient:
- Large, hybrid contactless connector: PXM accommodates both APC and UPC connectors to support multimode and singlemode link testing. Large core detector allows the PXM to give precise measurements with low uncertainty.
- Generate reports with FastReporter: PXM power meter measurements for power or loss can be processed directly by FastReporter.
- Smartphone-grade touchscreen: PXM and LXM have integrated high‑quality capacitive color touchscreens designed to be visible in full sun or dark areas, from any angle.

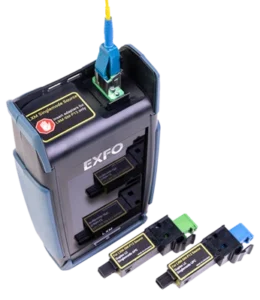

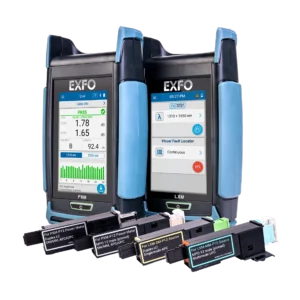

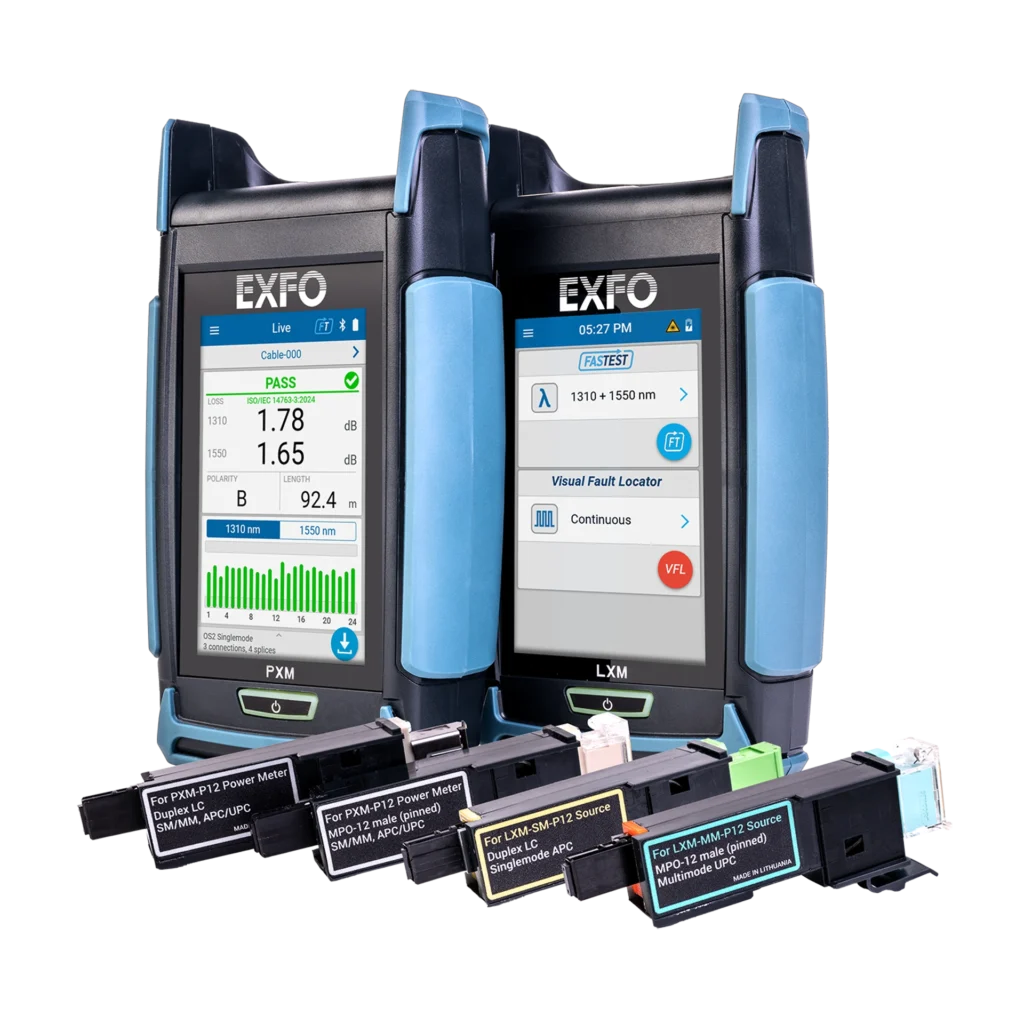

Switch between duplex and multi-fiber while ensuring standards compliance

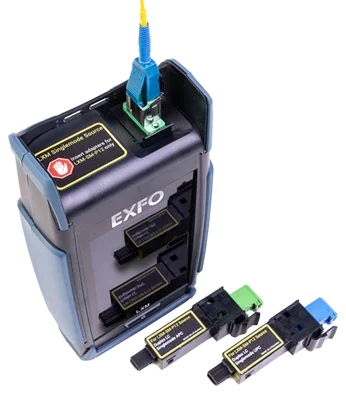

EXFO’s patented Click-Out adapters allow quick, tool-free switching between duplex and multi-fiber testing. They support a wide range of connector types, including duplex MDC, SN, LC, as well as-MMC, MPO, and SYSTIMAX MTP.
Enabling simplified one-cord referencing for standards-compliant certification, it delivers fast, versatile, and reliable testing for high-density fiber networks.

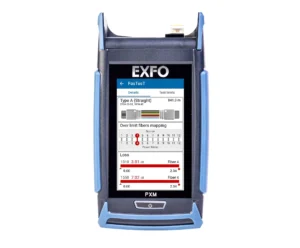

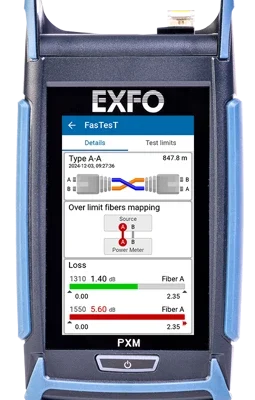

First-time-right polarity
Detect duplex and multi-fiber polarity issues hidden in trunk cabling—before the network goes live.

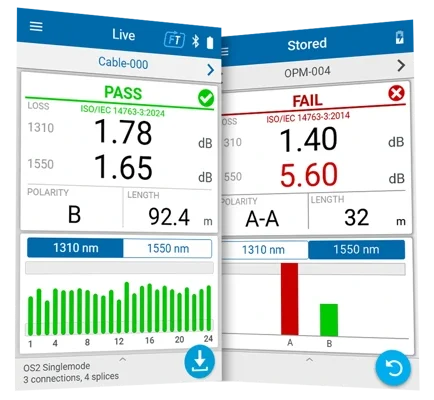

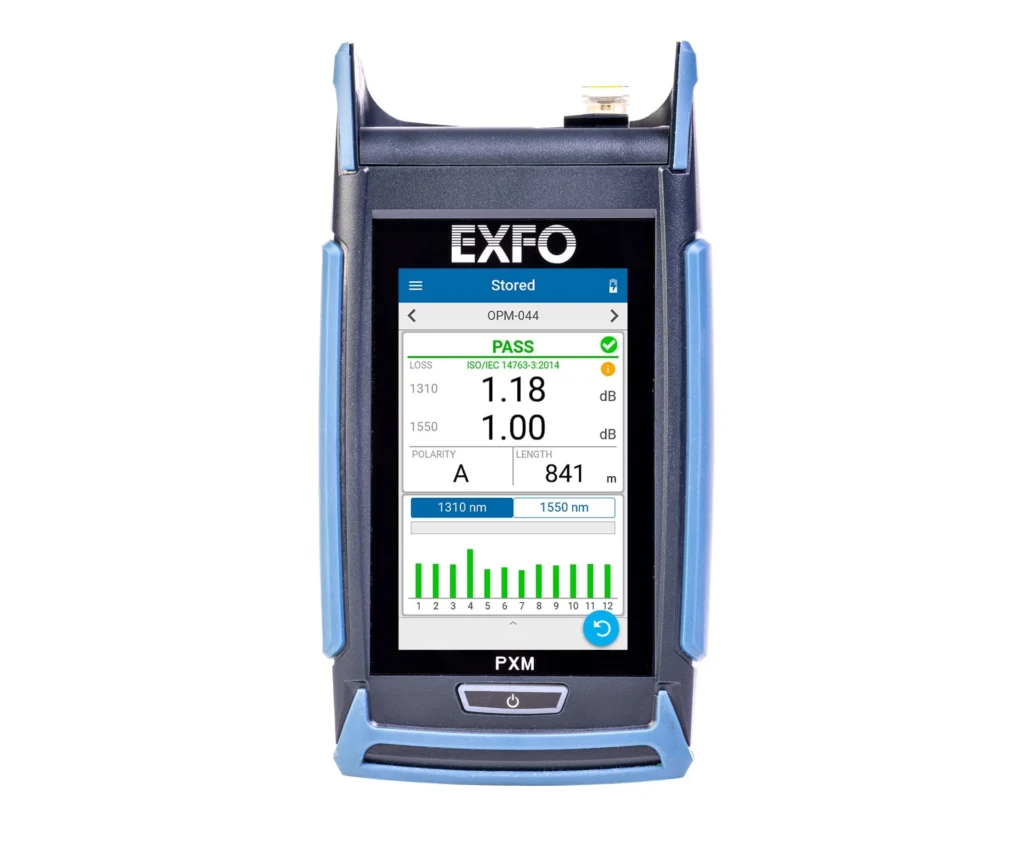

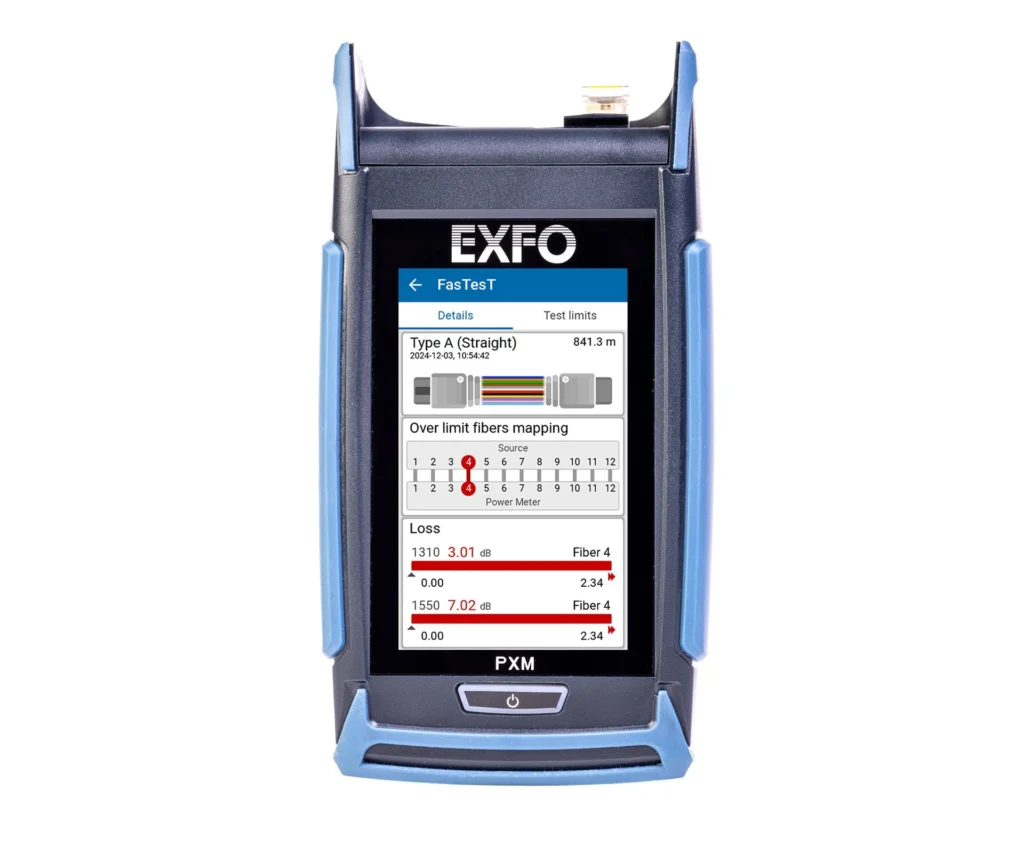

Duplex or multi-fiber pass/fail results all on one page
View the most important results together on one screen—complete jobs faster and transition to the next one with confidence.
- Global pass/fail status and pass/fail per fiber with length measurement
- Insertion loss per wavelength
- Live simultaneous reading of all fibers for faster testing and troubleshooting
- Polarity type with graphical representation
