FVAM Series Benchtop Microscopes

An end-to-end automated inspection and analysis system for fiber end-face conditions, supporting multi-fiber connectors such as MPO and pluggable devices like transceivers. It enables fast, accurate, and highly efficient verification of fiber end-face quality and cleanliness, making it ideal for data center environments and modern fiber network infrastructures.

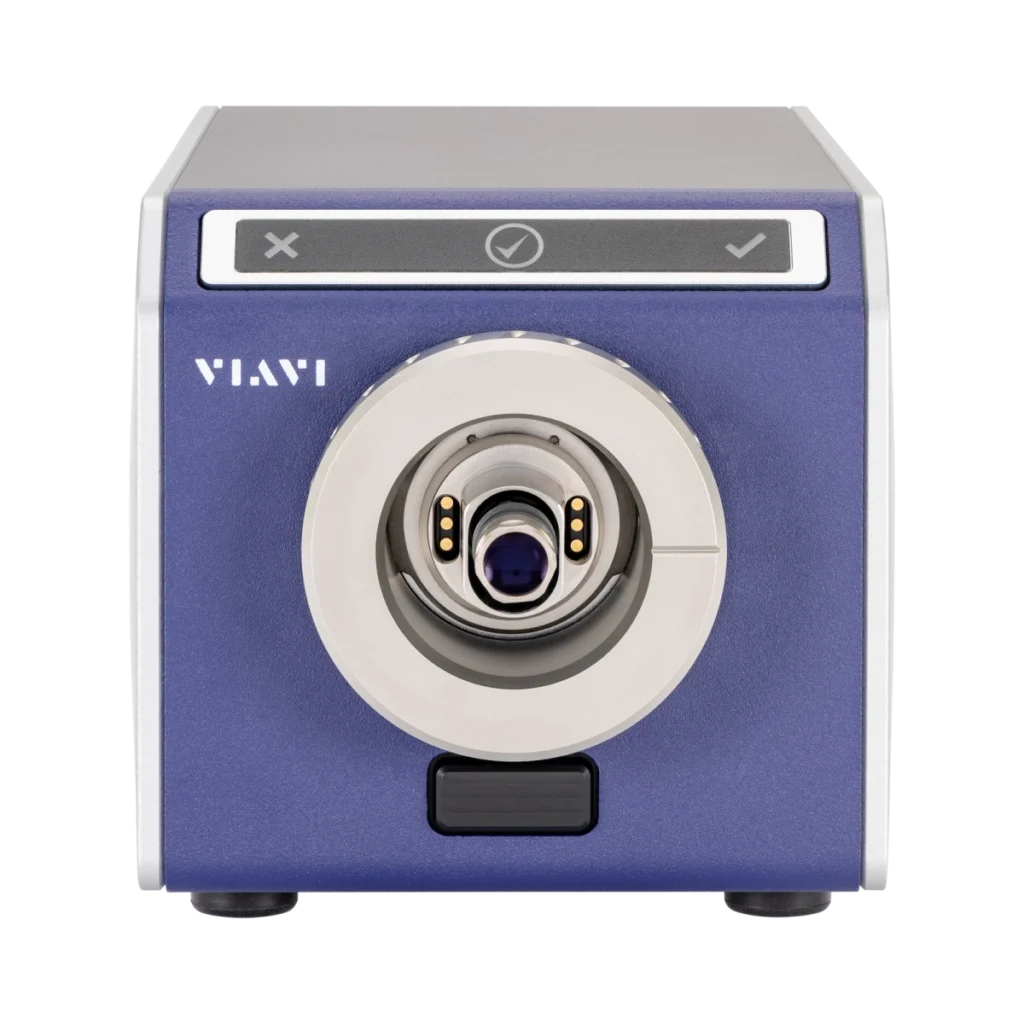

The FVAM-2000 is the latest product in VIAVI’s benchtop fiber-connector microscope family, specifically designed for optical laboratories and production environments. It delivers fast, flexible, and highly accurate automated fiber end-face inspection, supported by comprehensive analysis software.

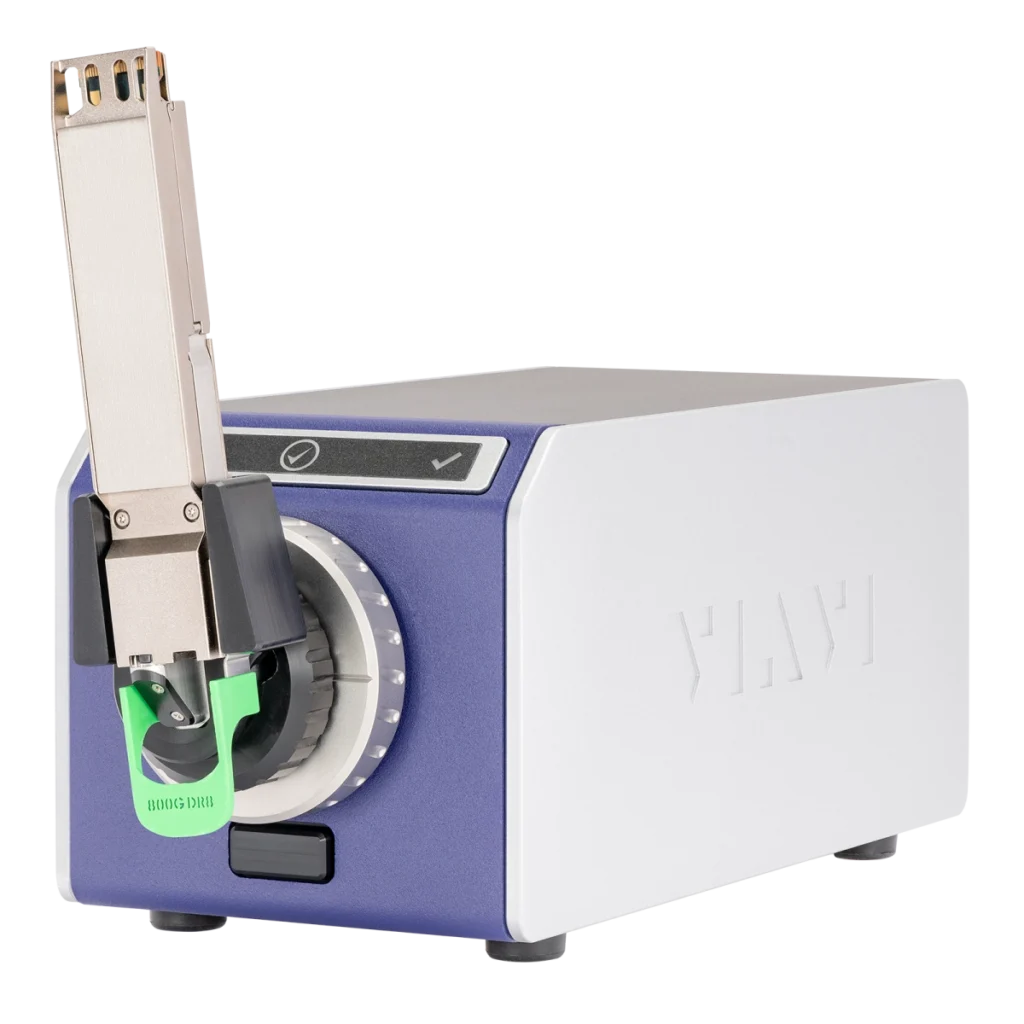

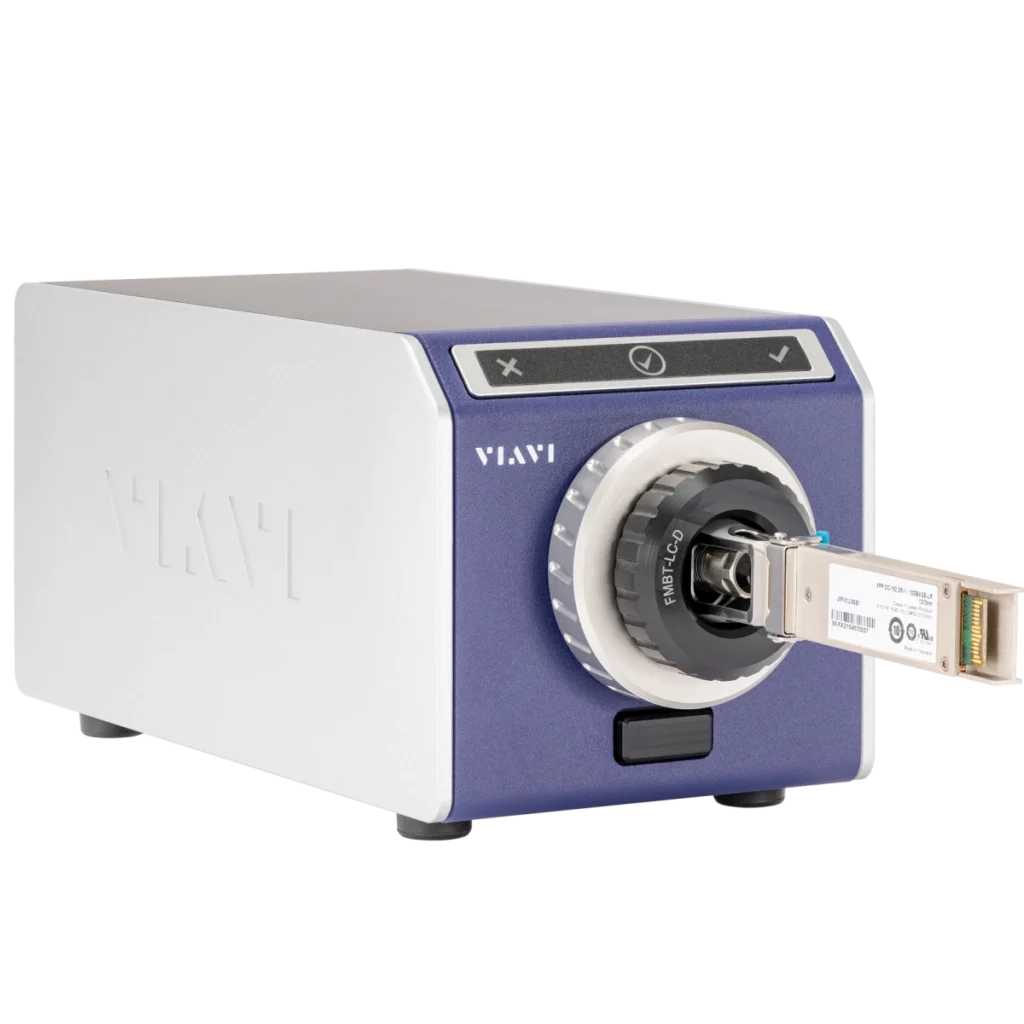

A key highlight is its specially engineered optical adapter system, enhanced with optimized illumination, which enables efficient inspection of pluggable optical transceivers, whether equipped with long pull tabs or not.

Key Benefits and Features

  • Fast, accurate, and reliable automated inspection of fiber end-faces

  • Compact solution for bulkhead and multifiber connector inspection with true benchtop-level performance

  • Supports inspection of single-fiber, duplex, and multifiber connectors

  • Ensures quality assurance for MPO connectors and transceiver devices through automated testing

  • Certifies MPO end-face quality in compliance with customer requirements and industry standards

  • Improves manufacturing efficiency across all production stages via PC-based software

  • Reduces inspection complexity with a fast and highly reliable automated workflow

  • Fully automated inspection and analysis with rapid results via FiberChekPRO and FiberChekULTRA software

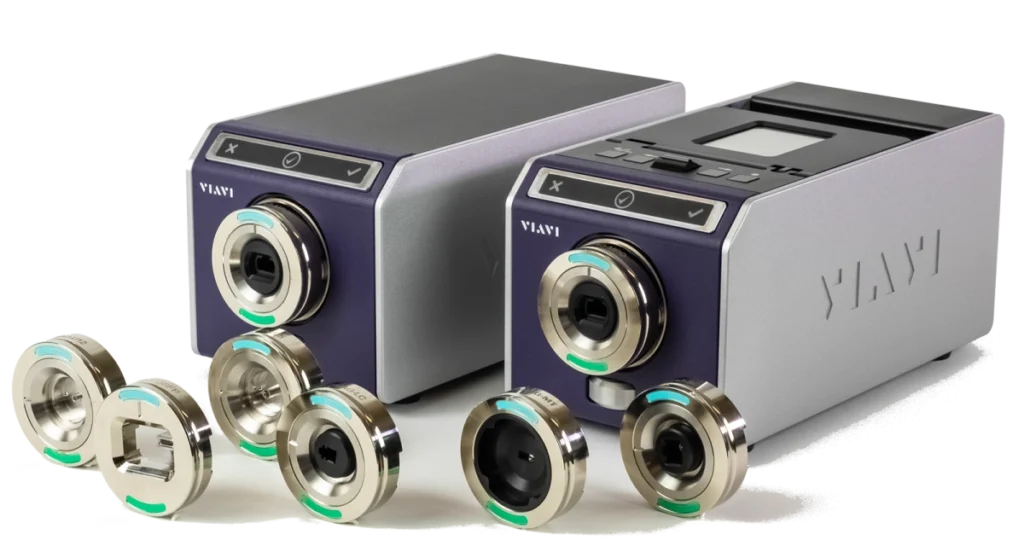

  • Supports FMAG magnetic adapters and FMBT adjustable rotating angle adapters, specifically designed to avoid obstructions such as transceiver pull tabs; compatible with FVAM-1000 and FVAM-2000 respectively

Inspection Applications

  • OSFP and QSFP transceivers

  • Breakout cassettes

  • Dual MPO-12 and MPO-16 connectors

  • Very Small Form Factor (VSFF) connectors or ultra-compact fiber connectors
