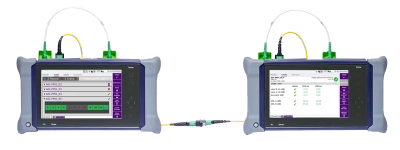

FiberComplete PRO

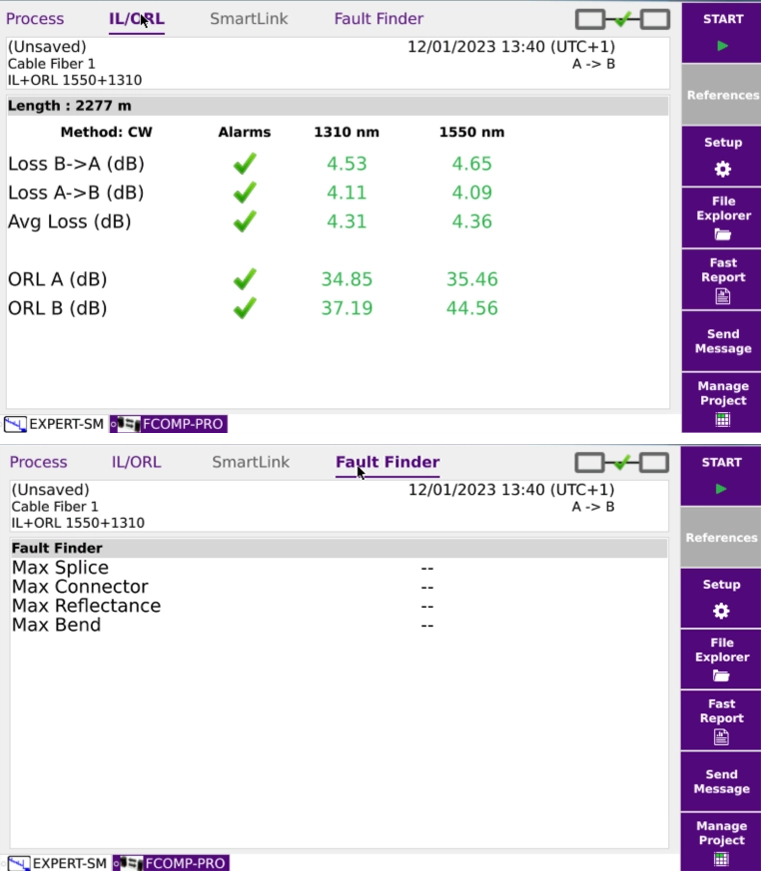

Loss Test – Automated Bidirectional IL and ORL Testing with Fault Location

The industry’s fastest Loss Test application delivers the essential testing capabilities required for Tier 1 (Basic) fiber optic link certification and network fault identification.

This solution integrates five test instruments into a single test port within one device, including:

• Light Source
• Power Meter
• Optical Loss Test Set (OLTS)
• Optical Return Loss (ORL) Meter
• Fault Finder

This enables fast and efficient testing while supporting:

• Fully automated bidirectional testing
• Insertion Loss (IL) measurement
• Optical Return Loss (ORL) measurement
• Fiber length measurement
• Link continuity verification
• Dual-wavelength testing in as little as 4.5 seconds
• Integrated Fault Finder functionality for rapid fault location and troubleshooting

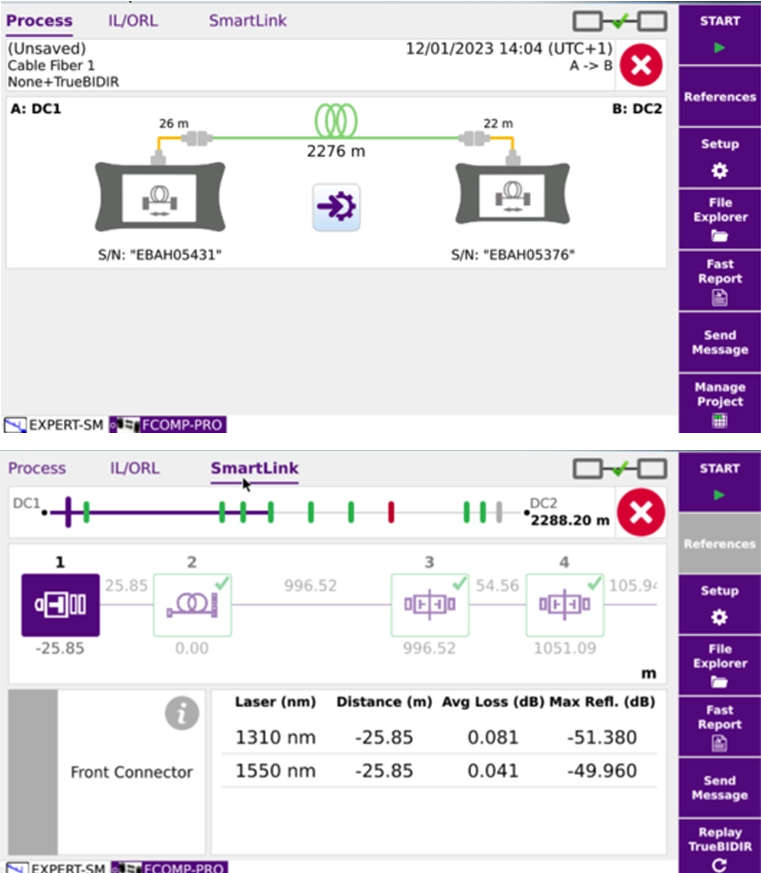

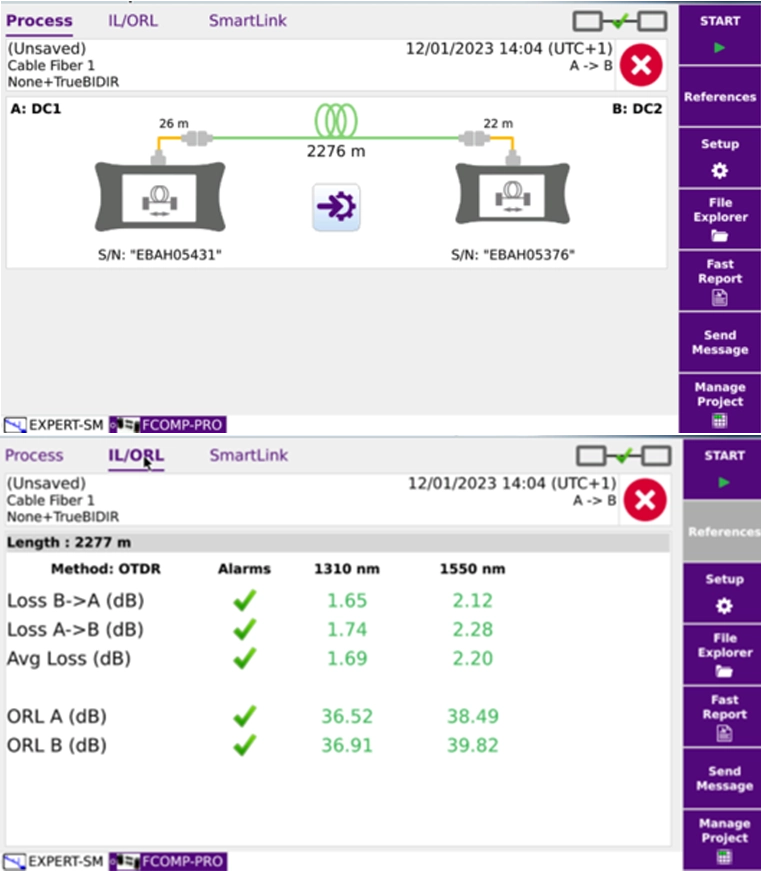

TrueBIDIR and Loopback – Real-Time On-Board Bidirectional OTDR Analysis

TrueBIDIR is the industry’s first solution capable of performing real-time, on-board bidirectional OTDR analysis directly on the test instrument.

Bidirectional OTDR analysis combines loss measurements from every event along a fiber optic link captured from both directions and calculates an average value. This approach provides more accurate loss measurements, commonly referred to as “True Loss Measurement.”

Key Features

• Supports end-to-end testing workflows in both Bidirectional and Loopback modes
• Performs real-time bidirectional OTDR analysis directly on the instrument
• Calculates averaged “True” OTDR event losses for each event, delivering more accurate and reliable results
• Completes testing and on-board result processing for dual-wavelength measurements in approximately one minute

FiberComplete™ – Uni-Directional and Bi-Directional IL, ORL, and OTDR Testing

FiberComplete™ is the industry’s first application capable of fully automating the entire fiber qualification process for both Tier 1 and Tier 2 fiber certification testing.

The solution integrates six essential test instruments into a single test port within one device, including:

• Light Source
• Power Meter
• Optical Loss Test Set (OLTS)
• Optical Return Loss (ORL) Meter
• Fault Finder
• OTDR

This provides a fast, accurate, and fully automated approach to fiber optic network testing and certification.

Key Features

• Fully automated bi-directional test process
• Insertion Loss (IL) measurement
• Optical Return Loss (ORL) measurement
• Fiber length measurement
• OTDR testing with TrueBIDIR analysis
• Link continuity verification
• Intelligent OTDR test configuration
• Approximately one minute to complete testing and on-board result processing for dual-wavelength measurements, with even faster execution for uni-directional OTDR testing
• Uniform test result and report naming structure for improved data organization, storage, and management efficiency

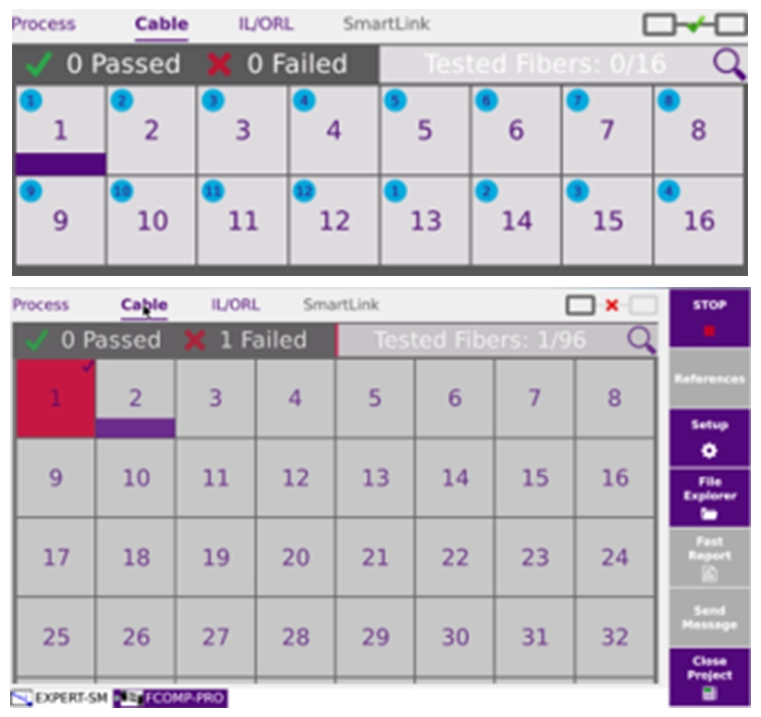

High Fiber Count – Automated Bi-Directional Testing for High-Density Fiber Networks

High Fiber Count extends automated bi-directional testing capabilities to support high-density fiber optic cables, while automating test sequencing to simplify complex certification workflows.

Users can certify multiple fibers simultaneously with a single button press and a single test sequence, reducing certification and reporting time by more than 80%.

Key Features

• Fully automated bi-directional test process
• Insertion Loss (IL) measurement
• Optical Return Loss (ORL) measurement
• Fiber length measurement
• OTDR testing with TrueBIDIR analysis
• Link continuity verification, including support for MPO polarity validation (Type A, B, or C) and ribbon fiber mapping
• Approximately 13 minutes to complete testing and on-board result processing for a 12-fiber link at two wavelengths
• Fiber Cable Management capabilities for efficient organization, tracking, and management of large-scale fiber testing projects and high-fiber-count cable infrastructures
